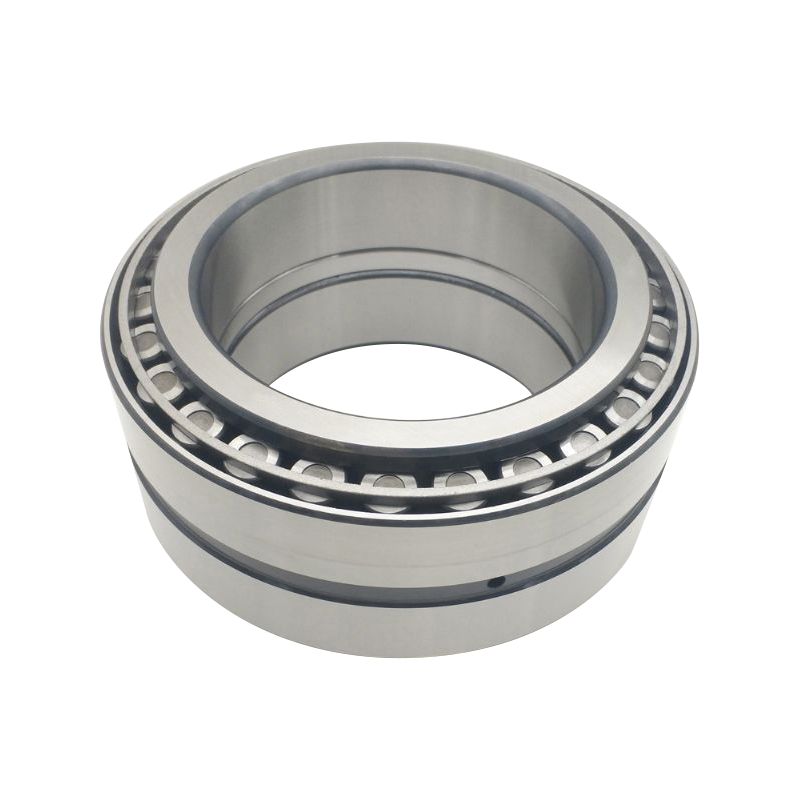

BT2B 332504/HA2 - Kaksiriviset kartiorullalaakerit

Kaksiriviset kartiorullalaakerit ovat erikoistuneita laakerityyppejä, jotka on suunniteltu kestämään samanaikaisesti raskaita radiaalisia ja kaksisuuntaisia aksiaalikuormia. Ne tarjoavat korkean jäykkyyden ja suuren kapasiteetin ratkaisun sovelluksiin, kuten vaihdelaatikoihin, valssaamoihin ja tunneliporauskoneisiin. Yksirivisiin laakereihin verrattuna ne tarjoavat erinomaisen jäykkyyden, pidemmän käyttöiän ja pienemmän kitkan.

Ota yhteyttä

PREV：No previous product SEURAAVA：30202 Yksirivinen kartiorullalaakeri

Kuvaus
Tekniset tiedot
Ota yhteyttä

Tärkeimmät ominaisuudet ja edut
· Raskaan kuorman kantokyky: Suunniteltu tukemaan suuria radiaalisia ja kaksisuuntaisia aksiaalikuormia.
· Korkea jäykkyys (jäykkyys): Tarjoaa jäykän laakerijärjestelyn, joka on hyödyllinen tarkkuussovelluksissa.
·Aksiaalinen sijainti/sijoittelu: Paikantaa akselin aksiaalisesti molempiin suuntiin asetetun aksiaalivälin sisällä tai esikuormituksen alaisena.
· Pitkä käyttöikä: Käyttää optimoituja rataprofiileja parantaakseen kuorman jakautumista, vähentääkseen rasitusta ja parantaakseen kulutuskestävyyttä.
· Vähentynyt kitka ja melu: Optimoidut telan päiden muotoilut ja pintakäsittelyt helpottavat voiteluainekalvon muodostumista, mikä vähentää kitkaa ja voi vähentää melua ja tärinää.
· Luotettavuus: Lisää toimintavarmuutta vaikeissakin olosuhteissa ja tarjoaa paremman herkkyyden kohdistusvirheille.

Soveltamisalat (sovellukset)
·Kaivosteollisuudessa niitä käytetään nosto- ja tunnelien louhintalaitteisiin.
·Valssaamoilla on myös suuri kysyntä kaksirivisille kartiorullalaakereille.

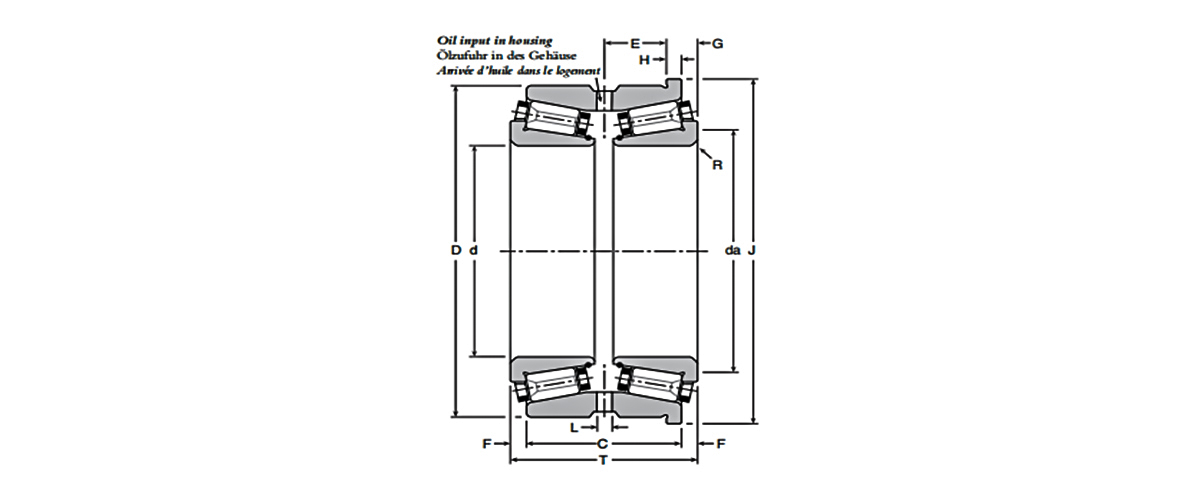

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					Dynaaminen	Staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
228.6	488.95		152.4	254	2828.7	4050			205	331945 Laakeri
260	480		220	284	3897	6615			210	BT2B 328130 Laakeri
260.35	422.275		139.7	178.592	2016	3645			86.5	BT2B 328187/HA2 Laakeri
300.038	422.275		136.525	174.625	1959.3	4275			71.5	BT2B 332504/HA2 Laakeri
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1 Laakeri
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Laakeri
340	460		128	160	1976.4	4410			71	BT2B 332830 Laakeri
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Laakeri
355.6	501.65		107.95	155.575	1778.4	3825			87	BT2B 332506/HA2 Laakeri
360	480		128	160	1989.9	4500			73	BT2B 332831 Laakeri
368.249	523.875		169.862	214.312	3042	6750			140	BT2B 332603/HA1 Laakeri
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Laakeri
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Laakeri
400	540		135	170	2503.8	5670			106	BT2-8143/HA1 Laakeri
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Laakeri
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Laakeri
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1 Laakeri
431.8	571.5		111.125	155.575	1030.5	4590			100	BT2B 332604/HA1 Laakeri
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Laakeri
479.425	679.45		222.25	276.225	4509	11430			302	331657 Laakeri
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Laakeri
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1 Laakeri
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Laakeri
558.8	736.6		177.8	225.425	3861	10440			150	331640 A laakeri
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Laakeri
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Laakeri
609.6	820		158.75	206.375	3618	9540			292	331500 Laakeri
711.2	914.4		139.7	190.5	3420	8685			265	BT2B 328028/HA1 Laakeri
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Laakeri
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1 Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
762	965.2		133.35	187.325	3222	8820			290	331780 A Laakeri
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Laakeri
914.4	1066.8		101.6	139.7	2340	7200			190	BT2B 332501/HA5 Laakeri
1160	1540		290	400	12780	34200			1900	BT2B 332780/HA5 Laakeri
1250	1500		190	250	6633	20160			795	BT2B 328339/HA4 Laakeri
240	480	200		220	3253.5	4950			183	BT2B 332931 Laakeri
300	440	105		105	968.4	1836			48.5	332168 Laakeri
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Laakeri
303.212	495.3	263.525		263.525	4427.1	8820			212	BT2B 332685/HA1 Laakeri
305.033	560	200		200	1509.3	4770			200	332068 Laakeri
305.033	560	200		199.263	1509.3	4770			205	BT2B 334087/HA3 Laakeri
305.07	500	200		200	2460.6	4680			150	332169 A Laakeri
305.07	500	200		200	2460.6	4680			150	332169 AA Laakeri
305.07	524	200		200	2460.6	4680			180	BT2B 334110/HA3 Laakeri
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1 Laakeri
320	515	160		160	2142.9	3960			160	BT2-8017/HA3 Laakeri
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1 Laakeri
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 Laakeri
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Laakeri
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1 Laakeri
346.075	488.95	95.25		104.775	607.5	2475			62	BT2B 332913/HB1 Laakeri
360	560	160		160	2300.4	4185			140	BT2-8000/HA3 Laakeri
380	560	200		200	2691.9	5895			165	BT2-8009/HA3 Laakeri
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Laakeri
384.175	546.1	193.675		193.675	3351.6	7470			166	BT2B 328580/HA1 Laakeri
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Laakeri
385.762	514.35	152.4		152.4	2061	5400			92	BT2B 328035/HA1 Laakeri
386	574	220		220	2670.3	5895			185	BT2-8010/HA3VA901 Laakeri
390	546.1	141.288		141.288	2105.1	4590			102	BT2B 328705/HA1 Laakeri
390	570	200		200	2670.3	5895			170	BT2B 328896/HA3 Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
390	590	200		200	2670.3	5895			200	BT2B 328934/HA3 Laakeri
390	548	180		180	2295	5265			155	BT2B 334045/HA3 Laakeri
400	650	240		240	3519	7335			290	332167 Laakeri
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3 Laakeri
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1 Laakeri
406.4	546.1	138.113		138.113	1980	4590			89	BT2B 331840 G/HA1C150 Laakeri
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Laakeri
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 Laakeri
408.4	546.1	125		150	1766.7	4275			99	BT2B 328466/HA1 Laakeri
408.4	546.1	98		120	1442.7	3105			76.5	BT2B 328874/HA1 Laakeri
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Laakeri
415.925	590.55	209.55		209.55	3757.5	8685			192	BT2B 328283/HA1 Laakeri
420	620	200		200	2673	6480			210	BT2-8016/HA3 Laakeri
430	535	84		84	972	2700			44.5	BT2B 334013/HA1 Laakeri
445	620	160		160	1908	4590			135	BT2B 334069/HA3 Laakeri
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Laakeri
447.675	635	223.838		223.838	3960	9900			236	331562 Laakeri
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 B/HB1 Laakeri
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Laakeri
450	595	178		178	2852.1	7335			140	BT2B 328523/HA1 Laakeri
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Laakeri
460	680	180		180	2826	6255			250	BT2B 334030/HA1 Laakeri
464	615	136		150	1944	5265			133	BT2-8215 Laakeri
482	640	160		160	1584	4680			145	BT2B 334112/HA3 Laakeri
482.6	733.425	190		190	2574	7470			293	BT2-8142/HA3 Laakeri
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Laakeri
500	730	280		280	5940	14040			420	331676 A Laakeri
501.65	711.2	250.825		250.825	4950	12330			330	331182 Laakeri
501.65	711.2	250.825		250.825	4950	12330			330	331182 Laakeri
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662 B/HB1 Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662/HB1 Laakeri
536.575	761.873	269.875		269.875	5643	14400			410	331682 Laakeri
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Laakeri
560	820	242		242	4509	10260			425	BT2B 332626/HA7 Laakeri
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 AG/HA1 Laakeri
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1 Laakeri
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854/HA1 Laakeri
580	830	280		280	6138	14940			515	331677 Laakeri
609.6	787.4	171.45		171.45	3618	9540			218	BT2B 331858/HA1 Laakeri
609.6	820	171.45		171.45	3618	9540			265	BT2B 332424/HA3 Laakeri
635	939.8	304.8		304.8	6039	14940			720	331555 B Laakeri
650	1030	270		270	7920	16470			900	BT2B 328306/HA4 Laakeri
660.4	812.8	176.212		176.212	3222	10080			195	331198 Laakeri
690	980	355		355	9204.3	22500			890	BT2-8164/HA4 Laakeri
800	1260	375		375	13230	30150			1850	BT2B 334032/HA4 Laakeri
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Laakeri
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Laakeri
110	180		76	95	400	730			8.63	352122 Laakeri
120	200		90	110	508	910			11.7	352124 Laakeri
130	200		80	102	450	800			9.72	352026 Laakeri
130	210		90	110	540	1000			13.5	352126 Laakeri
140	210		82	104	480	830			10.9	352028 Laakeri
140	225		90	115	560	1100			15.5	352128 Laakeri
150	225		86	110	500	900			14.5	352030 Laakeri
150	250		112	138	778	1560			25.8	352130 Laakeri
160	240		90	116	700	1300			16.5	352032 Laakeri
160	270		120	150	990	2160			34.9	352132 Laakeri
170	260		100	128	830	1800			21	352034 Laakeri
170	280		120	150	1100	2400			35.6	352134 Laakeri
180	280		110	142	1005	2340			27.9	352036 Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
180	300		134	164	1290	2500			43.2	352136 Laakeri
190	290		110	142	1005	2340			28.8	352038 Laakeri
190	320		130	170	1160	2410			50.4	352138 Laakeri
200	310		120	154	1500	2900			41.9	352040 Laakeri
200	340		150	184	1600	3300			61.5	352140 Laakeri
220	340		128	166	1210	2500			42.7	352044 Laakeri
220	370		150	195	1700	3200			76.3	352144 Laakeri
240	360		128	166	1430	3200			52.8	352048 Laakeri
240	400		163	210	2000	4100			98.1	352148 Laakeri
260	400		146	190	1530	3630			75.6	352052 Laakeri
260	440		180	225	2200	4600			126	352152 Laakeri
280	420		146	190	1820	4050			81.3	352056 Laakeri
300	460		168	220	2200	5300			117	352060 Laakeri
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Laakeri
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Laakeri
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT Laakeri
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Laakeri
31.75	72	26	46.5	51.75				9600	0.75	100031X/100072PT Laakeri
31.75	76.2	26	46.5	51.75				9600	0.75	100031X/100076XPT Laakeri
31.75	80	26	46.5	51.75				9600	0.75	100031X/100080PT Laakeri
33.338	66.675	23.5	42.48	47.24				10400	0.63	80033X/80066XPT Laakeri
33.338	68	23.5	42.48	47.24				10400	0.63	80033X/80068PT Laakeri
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Laakeri
34.925	76.2	26	46.5	51.75				9600	0.75	100034X/100076XPT Laakeri
34.925	80	26	46.5	51.75				9600	0.75	100034X/100080PT Laakeri
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT Laakeri
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Laakeri
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Laakeri
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT Laakeri
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Laakeri
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT Laakeri
38.1	80	26	45.5	51.25				8800	0.92	101038X/101080PT Laakeri
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT Laakeri
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Laakeri
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Laakeri
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Laakeri
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT Laakeri
41.275	80	26	45.5	51.25				8800	0.92	101041X/101080PT Laakeri
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Laakeri
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Laakeri
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Laakeri
44.45	88.9	28	55.66	58.83				8200	1.07	119044X/119088XPT Laakeri
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT Laakeri
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT Laakeri
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Laakeri
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Laakeri
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT Laakeri
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Laakeri
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT Laakeri
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT Laakeri
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT Laakeri
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Laakeri
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT Laakeri
50.8	96.838	29.5	54	59.5				6900	1.63	110050X/110096XPT Laakeri
50.8	98.425	29.5	54	59.5				6900	1.63	110050X/110098XPT Laakeri
50.8	100	29.5	54	59.5				6900	1.63	110050X/110100PT Laakeri
53.975	96.838	29.5	54	59.5				6900	1.63	110053X/110096XPT Laakeri
53.975	98.425	29.5	54	59.5				6900	1.63	110053X/110098XPT Laakeri
53.975	100	29.5	54	59.5				6900	1.63	110053X/110100PT Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT Laakeri
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT Laakeri
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Laakeri
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/110096XPT Laakeri
57.15	98.425	29.5	54	59.5				6900	1.63	110057X/110098XPT Laakeri
57.15	100	29.5	54	59.5				6900	1.63	110057X/110100PT Laakeri
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Laakeri
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT Laakeri
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Laakeri
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT Laakeri
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Laakeri
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT Laakeri
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Laakeri
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT Laakeri
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Laakeri
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Laakeri
60.325	100	26.5	46.88	52.44				6600	1.38	113060X/113100PT Laakeri
60.325	101.6	26.5	46.88	52.44				6600	1.38	113060X/113101XPT Laakeri
63.5	110	33	60.3	66.65				6200	1.94	120063X/120110PT Laakeri
63.5	120	32	59.88	65.44				5700	2.45	130063X/130120PT Laakeri
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Laakeri
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Laakeri
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Laakeri
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT Laakeri
69.85	120	32	59.88	65.44				5700	2.32	130069X/130120PT Laakeri
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Laakeri
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Laakeri
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT Laakeri
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Laakeri
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Laakeri
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Laakeri
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT Laakeri
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT Laakeri
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Laakeri
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Laakeri
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT Laakeri
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT Laakeri
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Laakeri
82.55	140	38.5	69.14	77.07				4900	3.68	140082X/140140PT Laakeri
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Laakeri
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Laakeri
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT Laakeri
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Laakeri
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT Laakeri
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT Laakeri
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT Laakeri
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT Laakeri
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Laakeri
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT Laakeri
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Laakeri
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Laakeri
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT Laakeri
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT Laakeri
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Laakeri
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT Laakeri
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT Laakeri
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Laakeri
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT Laakeri
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT Laakeri
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Laakeri
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Laakeri
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT Laakeri
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT Laakeri
98.425	152.4	42	75.8	83.9				4300	4.3	160098X/160152XPT Laakeri
98.425	158.75	42	78.5	83.9				4300	4.3	160098X/160158XPT Laakeri
98.425	160	42	78.5	83.9				4300	4.3	160098X/160160PT Laakeri
98.425	161.925	42	78.5	83.9				4300	4.3	160098X/160161XPT Laakeri
100	170	46	84	92				3900	7.67	180100/180170PT Laakeri
100	180	46	84	92				3900	7.67	180100/180180PT Laakeri
100	180.975	46	84	92				3900	7.67	180100/180180XPT Laakeri
100	190	46	84	92				3900	9.58	180100/180190PT Laakeri
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT Laakeri
101.6	170	46	84	92				3900	7.67	180101X/180170PT Laakeri
101.6	180	46	84	92				3900	7.67	180101X/180180PT Laakeri
101.6	180.975	46	84	92				3900	7.81	180101X/180180XPT Laakeri
101.6	190	46	84	92				3900	9.56	180101X/180190PT Laakeri
105	170	46	84	92				3900	7.67	180105/180170PT Laakeri
105	180	46	84	92				3900	7.67	180105/180180PT Laakeri
105	180.975	46	84	92				3900	7.58	180105/180180XPT Laakeri
105	190	46	84	92				3900	9.38	180105/180190PT Laakeri
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT Laakeri
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT Laakeri
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT Laakeri
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT Laakeri
111.125	200.025	50	82.6	95.3				3600	8.68	181111X/181200XPT Laakeri
115	165	31	55	60				3900	2.85	105115/105165PT Laakeri
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT Laakeri
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT Laakeri
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT Laakeri
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT Laakeri
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Laakeri
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT Laakeri
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT Laakeri
120	165	31	55	60				3900	2.85	105120/105165PT Laakeri
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Laakeri
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT Laakeri
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Laakeri
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Laakeri
127	175	31	55	60				3900	2.85	109127X/109175PT Laakeri
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT Laakeri
127	200.025	42	85.74	93.67				3400	7.42	164127X/164200XPT Laakeri
127	215	51	92	101				3100	11.05	200127X/200215PT Laakeri
127	215.9	51	92	101				3100	11.05	200127X/200215XPT Laakeri
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT Laakeri
133.35	200.025	42	85.74	93.67				3400	7.42	164133X/164200XPT Laakeri
133.35	215	51	92	101				3100	11.05	200133X/200215PT Laakeri
133.35	215.9	51	92	101				3100	10.55	200133X/200215XPT Laakeri
136.525	215	51	92	101				3100	11.05	200136X/200215PT Laakeri
136.525	215.9	51	92	101				3100	10.25	200136X/200215XPT Laakeri
139.7	215	51	92	101				3100	11.05	200139X/200215PT Laakeri
139.7	215.9	51	92	101				3100	11.05	200139X/200215XPT Laakeri
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT Laakeri
140	200	42	73	80.15				3100	6.38	161140/161200PT Laakeri
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT Laakeri
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT Laakeri
142.875	200.025	42	73	80.15				3100	6.38	161142X/161200XPT Laakeri
145	241.3	59	104	115				2900	17.15	240145/240241XPT Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
145	256	51	92	101				2700	11.83	203145/203256PT Laakeri
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT Laakeri
150	210	42	76	84				3000	9.1	163150/163210PT Laakeri
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT Laakeri
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT Laakeri
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT Laakeri
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT Laakeri
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT Laakeri
156	235	51	92	101				2700	11.83	203156/203235PT Laakeri
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT Laakeri
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT Laakeri
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT Laakeri
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT Laakeri
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT Laakeri
185	258	50	90	100				2500	12	187185/187258PT Laakeri
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT Laakeri
190.5	290	52	96	105				2200	14.2	206190X/206290PT Laakeri
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Laakeri
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT Laakeri
210	290	52	96	105				2200	13.1	206210/206290PT Laakeri
210	310	72	121.08	138.54				2100	25	283210/283310PT Laakeri
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT Laakeri
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT Laakeri
230	330	55	90.24	106.12				1900	21	244230X/244330PT Laakeri
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT Laakeri
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT Laakeri
260	385	66	114.34	130.12				1700	32	382260/382385PT Laakeri
25	52		36.5	43				13300	0.46	74025/74052GUD Laakeri
30	62		42.5	51				11600	0.64	70030/70062GUD Laakeri
30	66.675		42.48	52				10400	0.78	80030/80066XGUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
30	68		42.48	52				10400	0.78	80030/80068GUD Laakeri
32	72		46.5	57				9600	0.825	100031X/100072GUD Laakeri
32	76.2		46.5	57				9600	0.825	100031X/100076XGUD Laakeri
32	80		46.5	57				9600	0.825	100031X/100080GUD Laakeri
33	66.675		42.48	52				10400	0.78	80033X/80066XGUD Laakeri
33	68		42.48	52				10400	0.78	80033X/80068GUD Laakeri
35	72		46.5	57				9600	0.825	100034X/100072GUD Laakeri
35	76.2		46.5	57				9600	0.825	100034X/100076XGUD Laakeri
35	80		46.5	57				9600	0.825	100034X/100080GUD Laakeri
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Laakeri
35	68		42.48	52				10400	0.75	80035/80068GUD Laakeri
35	72		46.5	57				9600	0.825	100035/100072GUD Laakeri
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Laakeri
35	80		46.5	57				9600	0.825	100035/100080GUD Laakeri
36	72		36.5	42				9600	0.58	102036/102072GUD Laakeri
38	76		45.5	57				8800	0.85	101038X/101076GUD Laakeri
38	76.2		45.5	57				8800	0.85	101038X/101076XGUD Laakeri
38	80		45.5	57				8800	0.85	101038X/101080GUD Laakeri
40	76		45.5	57				8800	0.85	101040/101076GUD Laakeri
40	76.2		45.5	57				8800	0.85	101040/101076XGUD Laakeri
40	80		45.5	57				8800	1.025	101040/101080GUD Laakeri
40	85		48.66	55				8200	1.19	112040/112085GUD Laakeri
41	76		45.5	57				8800	0.85	101041X/101076GUD Laakeri
41	76.2		45.5	57				8800	0.85	101041X/101076XGUD Laakeri
41	80		45.5	57				8800	0.85	101041X/101080GUD Laakeri
41	85		48.66	55				8200	1.07	112041X/112085GUD Laakeri
44	90		51.3	64				7400	1.33	111044X/111090GUD Laakeri
44	93.266		51.3	64				7400	1.33	111044X/111093XGUD Laakeri
44	85		48.66	55				8200	1.07	112044X/112085GUD Laakeri
44	85		55.66	62				8200	1.17	119044X/119085GUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
44	88.9		55.66	62				8200	1.17	119044X/119088XGUD Laakeri
45	85		48.66	55				8200	1.07	112045/112085GUD Laakeri
45	85		55.66	62				8200	1.17	119045/119085GUD Laakeri
45	88.9		55.66	62				8200	1.17	119045/119088XGUD Laakeri
50	90		51.3	64				7400	1.33	111050/111090GUD Laakeri
50	93.266		51.3	64				7400	1.33	111050/111093XGUD Laakeri
50	96.838		54	65				6900	1.945	110050/110096XGUD Laakeri
50	98.425		54	65				6900	1.945	110050/110098XGUD Laakeri
50	100		54	65				6900	1.945	110050/110100GUD Laakeri
51	90		51.3	64				7400	1.33	111050X/111090GUD Laakeri
51	96.838		54	65				6900	1.945	110050X/110096XGUD Laakeri
51	98.425		54	65				6900	1.945	110050X/110098XGUD Laakeri
51	100		54	65				6900	1.945	110050X/110100GUD Laakeri
54	96.838		54	65				6900	1.945	110053X/110096XGUD Laakeri
54	98.425		54	65				6900	1.945	110053X/110098XGUD Laakeri
54	100		54	65				6900	1.945	110053X/110100GUD Laakeri
55	96.838		54	65				6900	1.945	110055/110096XGUD Laakeri
55	98.425		54	65				6900	1.945	110055/110098XGUD Laakeri
55	100		54	65				6900	1.765	110055/110100GUD Laakeri
57	96.838		54	65				6900	1.945	110057X/110096XGUD Laakeri
57	98.425		54	65				6900	1.945	110057X/110098XGUD Laakeri
57	100		54	65				6900	1.945	110057X/110100GUD Laakeri
57	100		46.88	58				6600	1.825	113057X/113100GUD Laakeri
57	101.6		46.88	58				6600	1.825	113057X/113101XGUD Laakeri
57	110		60.3	73				6200	2.39	120057X/120110GUD Laakeri
57	112.712		60.3	73				6200	2.39	120057X/120112XGUD Laakeri
60	100		46.88	58				6600	1.825	113060/113100GUD Laakeri
60	101.6		46.88	58				6600	1.825	113060/113101XGUD Laakeri
60	110		60.3	73				6200	2.39	120060/120110GUD Laakeri
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
60	120		59.88	71				5700	2.86	130060/130120GUD Laakeri
60	127		59.88	71				5700	2.86	130060/130127GUD Laakeri
60	100		46.88	58				6600	1.825	113060X/113100GUD Laakeri
60	101.6		46.88	58				6600	1.825	113060X/113101XGUD Laakeri
64	110		60.3	73				6200	2.21	120063X/120110GUD Laakeri
64	120		59.88	71				5700	2.86	130063X/130120GUD Laakeri
64	127		59.88	71				5700	2.86	130063X/130127GUD Laakeri
65	120		59.88	71				5700	2.86	130065/130120GUD Laakeri
65	127		59.88	71				5700	2.86	130065/130127GUD Laakeri
70	112.712		60.3	73				5800	2.015	124069X/124112XGUD Laakeri
70	120		59.88	71				5700	2.61	130069X/130120GUD Laakeri
70	120		73.12	89				5700	2.73	135069X/135120GUD Laakeri
70	127		59.88	71				5700	2.86	130069X/130127GUD Laakeri
70	112.712		60.3	73				5800	2.015	124070/124112XGUD Laakeri
70	120		59.88	71				5700	2.64	130070/130120GUD Laakeri
70	127		59.88	71				5700	2.86	130070/130127GUD Laakeri
73	120		49.7	64				5500	2.35	123073X/123120GUD Laakeri
73	120.65		49.7	64				5500	2.35	123073X/123120XGUD Laakeri
73	121.444		49.7	64				5500	2.35	123073X/123121XGUD Laakeri
73	123.825		49.7	64				5500	2.35	123073X/123123XGUD Laakeri
75	120		49.7	64				5500	2.25	123075/123120GUD Laakeri
75	120.65		49.7	64				5500	2.25	123075/123120XGUD Laakeri
75	121.444		49.7	64				5500	2.25	123075/123121XGUD Laakeri
75	123.825		49.7	64				5500	2.25	123075/123123XGUD Laakeri
75	127		60.5	73				5300	3.23	133075/133127GUD Laakeri
75	130		60.5	73				5300	3.23	133075/133130GUD Laakeri
75	133.35		60.5	73				5300	3.23	133075/133133XGUD Laakeri
75	136.525		60.5	73				5300	3.23	133075/133136XGUD Laakeri
76	120		49.7	64				5500	2.25	123076X/123120GUD Laakeri
76	120.65		49.7	64				5500	2.25	123076X/123120XGUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
76	123.825		49.7	64				5500	2.25	123076X/123123XGUD Laakeri
76	127		60.5	73				5300	3.23	133076X/133127GUD Laakeri
76	130		60.5	73				5300	3.23	133076X/133130GUD Laakeri
76	133.35		60.5	73				5300	3.23	133076X/133133XGUD Laakeri
76	136.525		60.5	73				5300	3.23	133076X/133136XGUD Laakeri
78	120		49.7	64				5500	2.25	123077X/123120GUD Laakeri
78	120.65		49.7	64				5500	2.25	123077X/123120XGUD Laakeri
78	121.444		49.7	64				5500	2.25	123077X/123121XGUD Laakeri
78	123.825		49.7	64				5500	2.25	123077X/123123XGUD Laakeri
80	140		69.14	85				4900	4.345	140080/140140GUD Laakeri
81	133.35		58.12	74				4900	2.25	126080X/126133XGUD Laakeri
83	133.35		58.12	74				4900	2.25	126082X/126133XGUD Laakeri
83	136.525		58.12	74				4900	2.25	126082X/126136XGUD Laakeri
83	140		69.14	85				4900	4.145	140082X/140140GUD Laakeri
84	133.35		58.12	74				4900	2.4	126084X/126133XGUD Laakeri
84	136.525		58.12	74				4900	2.4	126084X/126136XGUD Laakeri
85	140		69.14	85				4900	3.945	140085/140140GUD Laakeri
85	170		89	106				4200	8.345	210085/210170GUD Laakeri
86	133.35		58.12	74				4900	2.4	126085X/126133XGUD Laakeri
86	136.525		58.12	74				4900	2.4	126085X/126136XGUD Laakeri
89	133.35		58.12	74				4900	2.4	126088X/126133XGUD Laakeri
89	136.525		58.12	74				4900	2.4	126088X/126136XGUD Laakeri
90	133.35		60.12	76				4800	3.9	117090/117133XGUD Laakeri
90	170		89	106				4200	8.345	210090/210170GUD Laakeri
90	150		62	75				4400	4.625	131090/131150GUD Laakeri
90	152.4		62	75				4400	4.625	131090/131152XGUD Laakeri
90	158.75		62	75				4400	4.625	131090/131158XGUD Laakeri
90	152.4		75.8	92				4300	4.95	160090/160152XGUD Laakeri
90	158.75		75.8	92				4300	4.95	160090/160158XGUD Laakeri
90	160		75.8	92				4300	4.95	160090/160160GUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
90	161.925		75.8	92				4300	4.95	160090/160161XGUD Laakeri
92	150		62	75				4400	4.625	131092X/131150GUD Laakeri
92	152.4		62	75				4400	4.625	131092X/131152XGUD Laakeri
92	158.75		62	75				4400	4.625	131092X/131158XGUD Laakeri
94	152.4		62	75				4400	4.625	131093X/131152XGUD Laakeri
94	150		62	75				4400	4.625	131093X/131150GUD Laakeri
94	158.75		62	75				4400	4.625	131093X/131158XGUD Laakeri
95	150		62	75				4400	4.625	131095/131150GUD Laakeri
95	152.4		62	75				4400	4.505	131095/131152XGUD Laakeri
95	158.75		62	75				4400	4.625	131095/131158XGUD Laakeri
95	170		89	106				4200	8.345	210095/210170GUD Laakeri
97	152.4		62	75				4400	4.345	131097/131152XGUD Laakeri
97	150		62	75				4400	4.625	131097/131150GUD Laakeri
97	158.75		62	75				4400	4.625	131097/131158XGUD Laakeri
98	152.4		75.8	92				4300	4.95	160098X/160152XGUD Laakeri
98	158.75		75.8	92				4300	4.95	160098X/160158XGUD Laakeri
98	160		75.8	92				4300	4.95	160098X/160160GUD Laakeri
98	161.925		75.8	92				4300	4.95	160098X/160161XGUD Laakeri
100	170		84	100				3900	11	180100/180170GUD Laakeri
100	180		84	100				3900	9.1	180100/180180GUD Laakeri
100	180.975		84	100				3900	11	180100/180180XGUD Laakeri
100	190		84	100				3900	11	180100/180190GUD Laakeri
102	165.1		67.96	87				3900	9.16	141101X/141165XGUD Laakeri
102	170		84	100				3900	11	180101X/180170GUD Laakeri
102	180		84	100				3900	11	180101X/180180GUD Laakeri
102	180.975		84	100				3900	9.28	180101X/180180XGUD Laakeri
102	190		84	100				3900	10.96	180101X/180190GUD Laakeri
105	170		84	100				3900	11	180105/180170GUD Laakeri
105	180		84	100				3900	11	180105/180180GUD Laakeri
105	180.975		84	100				3900	8.82	180105/180180XGUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
105	190		84	100				3900	10.5	180105/180190GUD Laakeri
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD Laakeri
111	180.975		82.6	108				3600	8.34	181111X/181180XGUD Laakeri
111	190		82.6	108				3600	9.95	181111X/181190GUD Laakeri
111	190.5		82.6	108				3600	10.05	181111X/181190XGUD Laakeri
111	200.025		82.6	108				3600	8.34	181111X/181200XGUD Laakeri
115	165		55	65				3900	3.36	105115/105165GUD Laakeri
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Laakeri
115	190		82.6	108				3600	9.45	181115/181190GUD Laakeri
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Laakeri
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Laakeri
118	180.975		82.6	108				3600	7.42	181118/181180XGUD Laakeri
118	190		82.6	108				3600	9.03	181118/181190GUD Laakeri
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Laakeri
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Laakeri
120	165		55	65				3900	3.36	105120/105165GUD Laakeri
120	190		82.6	108				3500	8.46	184120/184190GUD Laakeri
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Laakeri
120	199		82.6	108				3500	8.46	184120/184199GUD Laakeri
120	200		82.6	108				3500	8.46	184120/184200GUD Laakeri
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD Laakeri
127	200.025		85.74	101.6				3400	8.8	164127X/164200XGUD Laakeri
127	215		92	110				3100	13.54	200127X/200215GUD Laakeri
127	215.9		92	110				3100	13.54	200127X/200215XGUD Laakeri
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD Laakeri
133	200.025		85.74	101.6				3400	8.8	164133X/164200XGUD Laakeri
133	215		92	110				3100	13.54	200133X/200215GUD Laakeri
133	215.9		92	110				3100	12.49	200133X/200215XGUD Laakeri
137	215		92	110				3100	13.54	200136X/200215GUD Laakeri
137	215.9		92	110				3100	11.97	200136X/200215XGUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
140	215		92	110				3100	13.54	200139X/200215GUD Laakeri
140	215.9		92	110				3100	13.54	200139X/200215XGUD Laakeri
140	241.3		104	126				2900	19.86	240139X/240241XGUD Laakeri
140	200		78	92.3				3100	9.7	161140/161200GSUD Laakeri
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD Laakeri
143	200		78	92.3				3100	9.7	161142X/161200GSUD Laakeri
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD Laakeri
145	241.3		104	126				2900	18.78	240145/240241XGUD Laakeri
145	256		92	110				2700	14.49	203145/203256GUD Laakeri
149	241.3		104	126				2900	18.78	240149X/240241XGUD Laakeri
150	210		76	92				3000	9.96	163150/163210GUD Laakeri
152	222.25		81.2	105				3000	10.73	183152X/183222XGUD Laakeri
152	254		116.9	155				2600	24.87	281152X/281254XGUD Laakeri
152	266.7		116.9	155				2600	24.87	281152X/281266XGUD Laakeri
156	254		116.9	155				2600	24.87	281155X/281254XGUD Laakeri
156	266.7		116.9	155				2600	24.87	281155X/281266XGUD Laakeri
156	235		92	110				2700	14.49	203156/203235GUD Laakeri
165	254		88.96	108				2600	14.9	186165X/186254XGUD Laakeri
170	254		88.96	108				2600	14.9	186170/186254XGUD Laakeri
178	227.013		63.48	75				2700	5.93	115177X/115227XGUD Laakeri
178	254		88.96	108				2600	14.9	186177X/186254XGUD Laakeri
178	288.925		122.25	154				2300	31.8	280177X/280288XGUD Laakeri
185	258		90	110				2500	11.94	187185/187258GUD Laakeri
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Laakeri
191	266.7		94.14	113.18				2400	15	204190X/204266XGUD Laakeri
191	282.575		91.42	120				2300	19.3	242190X/242282XGUD Laakeri
191	290		96	114				2200	17	206190X/206290GUD Laakeri
203	310		121.07	156				2100	32	283203X/283310GUD Laakeri
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD Laakeri
210	290		96	114				2200	17	206210/206290GUD Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
210	310		121.07	156				2100	31.2	283210/283310GUD Laakeri
210	317.5		121.07	156				2100	34.5	283210/283317XGUD Laakeri
216	355.6		124.72	166				1900	50	284215X/284355XGUD Laakeri
229	355.6		124.72	166				1900	50	284228X/284355XGUD Laakeri
230	327.025		90.24	122				1900	23	244230/244327XGUD Laakeri
230	330		90.24	122				1900	26.84	244230/244330GUD Laakeri
235	327.025		90.24	122				1900	20	244234X/244327XGUD Laakeri
235	330		90.24	122				1900	26.8	244234X/244330GUD Laakeri
235	355.6		124.72	166				1900	47.43	284234X/284355XGUD Laakeri
254	400.05		114.24	146				1700	53.98	382254X/382400XGUD Laakeri
275	406.4		140	176				1600	65.94	320275/320406XGUD Laakeri
280	406.4		140	176				1600	63.18	320280X/320406XGUD Laakeri
330	482.6		158.72	200				1400	104	380330X/380482XGUD Laakeri
338	419.1		79	94				1500	30.4	152338X/152419XGUD Laakeri
356	482.6		100.55	145				1400	57.3	282355X/282482XGUD Laakeri
381	508		147	187				1300	79.2	303381X/303508XGUD Laakeri
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Laakeri
432	533.4		100.78	123				1200	44.7	232431X/232533XGUD Laakeri
457	596.9		147	187				1100	94.3	300457X/300596XGUD Laakeri
506	636		147	187				1000	115	307506/307636GUD Laakeri
25	52		36.5	43				13300	0.48	74025/74052HUWF Laakeri
30	62		42.5	51				11600	0.66	70030/70062HUWF Laakeri
30	66.675		42.48	52				10400	0.8	80030/80066XHUWF Laakeri
30	68		42.48	52				10400	0.8	80030/80068HUWF Laakeri
32	72		46.5	57				9600	0.86	100031X/100072HUWF Laakeri
32	76.2		46.5	57				9600	0.86	100031X/100076XHUWF Laakeri
32	80		46.5	57				9600	0.86	100031X/100080HUWF Laakeri
33	66.675		42.48	52				10400	0.8	80033X/80066XHUWF Laakeri
33	68		42.48	52				10400	0.8	80033X/80068HUWF Laakeri
35	72		46.5	57				9600	0.86	100034X/100072HUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
35	76.2		46.5	57				9600	0.86	100034X/100076XHUWF Laakeri
35	80		46.5	57				9600	0.86	100034X/100080HUWF Laakeri
35	66.675		42.48	52				10400	0.74	80035/80066XHUWF Laakeri
35	72		46.5	57				9600	0.855	100035/100072HUWF Laakeri
35	76.2		46.5	57				9600	0.86	100035/100076XHUWF Laakeri
35	80		46.5	57				9600	0.86	100035/100080HUWF Laakeri
36	72		36.5	42				9600	0.595	102036/102072HUWF Laakeri
38	76		45.5	57				8800	0.865	101038X/101076HUWF Laakeri
38	76.2		45.5	57				8800	0.865	101038X/101076XHUWF Laakeri
38	80		45.5	57				8800	0.865	101038X/101080HUWF Laakeri
40	76		45.5	57				8800	0.865	101040/101076HUWF Laakeri
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF Laakeri
40	80		45.5	57				8800	1.07	101040/101080HUWF Laakeri
40	85		48.66	55				8200	1.13	112040/112085HUWF Laakeri
41	76		45.5	57				8800	0.865	101041X/101076HUWF Laakeri
41	76.2		45.5	57				8800	0.865	101041X/101076XHUWF Laakeri
41	80		45.5	57				8800	0.865	101041X/101080HUWF Laakeri
41	85		48.66	55				8200	1.11	112041X/112085HUWF Laakeri
44	85		48.66	55				8200	1.11	112044X/112085HUWF Laakeri
44	85		55.66	62				8200	1.19	119044X/119085HUWF Laakeri
44	88.9		55.66	62				8200	1.19	119044X/119088XHUWF Laakeri
44	90		51.3	64				7400	1.38	111044X/111090HUWF Laakeri
44	93.266		51.3	64				7400	1.38	111044X/111093XHUWF Laakeri
45	85		48.66	55				8200	1.11	112045/112085HUWF Laakeri
45	85		55.66	62				8200	1.19	119045/119085HUWF Laakeri
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Laakeri
50	90		51.3	64				7400	1.38	111050/111090HUWF Laakeri
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF Laakeri
50	96.838		54	65				6900	2.005	110050/110096XHUWF Laakeri
50	98.425		54	65				6900	2.005	110050/110098XHUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
50	100		54	65				6900	2.005	110050/110100HUWF Laakeri
51	90		51.3	64				7400	1.38	111050X/111090HUWF Laakeri
51	96.838		54	65				6900	2.005	110050X/110096XHUWF Laakeri
51	98.425		54	65				6900	2.005	110050X/110098XHUWF Laakeri
51	100		54	65				6900	2.005	110050X/110100HUWF Laakeri
54	96.838		54	65				6900	2.005	110053X/110096XHUWF Laakeri
54	98.425		54	65				6900	2.005	110053X/110098XHUWF Laakeri
54	100		54	65				6900	2.005	110053X/110100HUWF Laakeri
55	96.838		54	65				6900	2.005	110055/110096XHUWF Laakeri
55	98.425		54	65				6900	2.005	110055/110098XHUWF Laakeri
55	100		54	65				6900	1.825	110055/110100HUWF Laakeri
57	96.838		54	65				6900	2.005	110057X/110096XHUWF Laakeri
57	96.838		54	65				6900	2.005	110057X/110098XHUWF Laakeri
57	100		54	65				6900	2.005	110057X/110100HUWF Laakeri
57	100		46.88	58				6600	1.9	113057X/113100HUWF Laakeri
57	101.6		46.88	58				6600	1.9	113057X/113101XHUWF Laakeri
57	110		60.3	73				6200	2.47	120057X/120110HUWF Laakeri
57	112.712		60.3	73				6200	2.47	120057X/120112XHUWF Laakeri
60	100		46.88	58				6600	1.9	113060/113100HUWF Laakeri
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF Laakeri
60	110		60.3	73				6200	2.47	120060/120110HUWF Laakeri
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF Laakeri
60	120		59.88	71				5700	2.96	130060/130120HUWF Laakeri
60	127		59.88	71				5700	2.96	130060/130127HUWF Laakeri
60	100		46.88	58				6600	1.9	113060X/113100HUWF Laakeri
60	101.6		46.88	58				6600	1.9	113060X/113101XHUWF Laakeri
64	110		60.3	73				6200	2.29	120063X/120110HUWF Laakeri
64	120		59.88	71				5700	2.96	130063X/130120HUWF Laakeri
64	127		59.88	71				5700	2.96	130063X/130127HUWF Laakeri
65	120		59.88	71				5700	2.96	130065/130120HUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
65	127		59.88	71				5700	2.96	130065/130127HUWF Laakeri
70	127		59.88	71				5700	2.96	130069X/130127HUWF Laakeri
70	112.712		60.3	73				5800	2.085	124069X/124112XHUWF Laakeri
70	120		59.88	71				5700	2.71	130069X/130120HUWF Laakeri
70	120		73.12	89				5700	2.79	135069X/135120HUWF Laakeri
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF Laakeri
70	120		59.88	71				5700	2.7	130070/130120HUWF Laakeri
70	127		59.88	71				5700	2.96	130070/130127HUWF Laakeri
73	120		49.7	64				5500	2.35	123073X/123120HUWF Laakeri
73	120.65		49.7	64				5500	2.35	123073X/123120XHUWF Laakeri
73	121.444		49.7	64				5500	2.35	123073X/123121XHUWF Laakeri
73	123.825		49.7	64				5500	2.35	123073X/123123XHUWF Laakeri
75	120		49.7	64				5500	2.25	123075/123120HUWF Laakeri
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF Laakeri
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF Laakeri
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Laakeri
75	127		60.5	73				5300	3.3	133075/133127HUWF Laakeri
75	130		60.5	73				5300	3.3	133075/133130HUWF Laakeri
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF Laakeri
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF Laakeri
76	120		49.7	64				5500	2.25	123076X/123120HUWF Laakeri
76	120.65		49.7	64				5500	2.25	123076X/123120XHUWF Laakeri
76	123.825		49.7	64				5500	2.25	123076X/123123XHUWF Laakeri
76	127		60.5	73				5300	3.3	133076X/133127HUWF Laakeri
76	130		60.5	73				5300	3.3	133076X/133130HUWF Laakeri
76	133.35		60.5	73				5300	3.3	133076X/133133XHUWF Laakeri
76	136.525		60.5	73				5300	3.3	133076X/133136XHUWF Laakeri
78	120		49.7	64				5500	2.25	123077X/123120HUWF Laakeri
78	120.65		49.7	64				5500	2.25	123077X/123120XHUWF Laakeri
78	121.444		49.7	64				5500	2.25	123077X/123121XHUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
78	123.825		49.7	64				5500	2.25	123077X/123123XHUWF Laakeri
80	140		69.14	85				4900	4.545	140080/140140HUWF Laakeri
81	133.35		58.12	74				4900	2.25	126080X/126133XHUWF Laakeri
83	133.35		58.12	74				4900	2.25	126082X/126133XHUWF Laakeri
83	136.525		58.12	74				4900	2.25	126082X/126136XHUWF Laakeri
83	140		69.14	85				4900	4.345	140082X/140140HUWF Laakeri
84	133.35		58.12	74				4900	2.4	126084X/126133XHUWF Laakeri
84	136.525		58.12	74				4900	2.4	126084X/126136XHUWF Laakeri
85	140		69.14	85				4900	4.145	140085/140140HUWF Laakeri
85	170		89	106				4200	8.545	210085/210170HUWF Laakeri
86	133.35		58.12	74				4900	2.4	126085X/126133XHUWF Laakeri
86	136.525		58.12	74				4900	2.4	126085X/126136XHUWF Laakeri
89	133.35		58.12	74				4900	2.4	126088X/126133XHUWF Laakeri
89	136.525		58.12	74				4900	2.4	126088X/126136XHUWF Laakeri
90	133.35		60.12	76				4800	4	117090/117133XHUWF Laakeri
90	150		62	75				4400	4.745	131090/131150HUWF Laakeri
90	152.4		62	75				4400	4.745	131090/131152XHUWF Laakeri
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF Laakeri
90	158.75		62	75				4400	4.745	131090/131158XHUWF Laakeri
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF Laakeri
90	160		75.8	92				4300	5.15	160090/160160HUWF Laakeri
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF Laakeri
90	170		89	106				4200	8.545	210090/210170HUWF Laakeri
92	150		62	75				4400	4.745	131092X/131150HUWF Laakeri
92	152.4		62	75				4400	4.745	131092X/131152XHUWF Laakeri
92	158.75		62	75				4400	4.745	131092X/131158XHUWF Laakeri
94	150		62	75				4400	4.745	131093X/131150HUWF Laakeri
94	152.4		62	75				4400	4.745	131093X/131152XHUWF Laakeri
94	158.75		62	75				4400	4.745	131093X/131158XHUWF Laakeri
95	150		62	75				4400	4.745	131095/131150HUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
95	152.4		62	75				4400	4.625	131095/131152XHUWF Laakeri
95	158.75		62	75				4400	4.745	131095/131158XHUWF Laakeri
95	170		89	106				4200	8.545	210095/210170HUWF Laakeri
97	150		62	75				4400	4.745	131097/131150HUWF Laakeri
97	152.4		62	75				4400	4.465	131097/131152XHUWF Laakeri
97	158.75		62	75				4400	4.745	131097/131158XHUWF Laakeri
98	152.4		75.8	92				4300	5.15	160098X/160152XHUWF Laakeri
98	158.75		75.8	92				4300	5.15	160098X/160158XHUWF Laakeri
98	160		75.8	92				4300	5.15	160098X/160160HUWF Laakeri
98	161.925		75.8	92				4300	5.15	160098X/160161XHUWF Laakeri
100	170		84	100				3900	9.52	180100/180170HUWF Laakeri
100	180		84	100				3900	9.42	180100/180180HUWF Laakeri
100	180.975		84	100				3900	9.52	180100/180180XHUWF Laakeri
100	190		84	100				3900	11.12	180100/180190HUWF Laakeri
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF Laakeri
102	170		84	100				3900	9.52	180101X/180170HUWF Laakeri
102	180		84	100				3900	9.52	180101X/180180HUWF Laakeri
102	180.975		84	100				3900	9.52	180101X/180180XHUWF Laakeri
102	190		84	100				3900	11.08	180101X/180190HUWF Laakeri
105	170		84	100				3900	9.52	180105/180170HUWF Laakeri
105	180		84	100				3900	9.52	180105/180180HUWF Laakeri
105	180.975		84	100				3900	9.06	180105/180180XHUWF Laakeri
105	190		84	100				3900	10.62	180105/180190HUWF Laakeri
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF Laakeri
111	180.975		82.6	108				3600	8.6	181111X/181180XHUWF Laakeri
111	190		82.6	108				3600	10.1	181111X/181190HUWF Laakeri
111	190.5		82.6	108				3600	10.4	181111X/181190XHUWF Laakeri
111	200.025		82.6	108				3600	8.6	181111X/181200XHUWF Laakeri
115	165		55	65				3900	3.45	105115/105165HUWF Laakeri
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
115	190		82.6	108				3600	9.6	181115/181190HUWF Laakeri
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF Laakeri
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF Laakeri
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF Laakeri
118	190		82.6	108				3600	9.18	181118/181190HUWF Laakeri
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF Laakeri
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF Laakeri
120	165		55	65				3900	3.45	105120/105165HUWF Laakeri
120	190		82.6	108				3500	8.8	184120/184190HUWF Laakeri
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF Laakeri
120	199		82.6	108				3500	8.8	184120/184199HUWF Laakeri
120	200		82.6	108				3500	8.8	184120/184200HUWF Laakeri
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF Laakeri
127	200.025		85.74	101.6				3400	9.2	164127X/164200XHUWF Laakeri
127	215		92	110				3100	13.9	200127X/200215HUWF Laakeri
127	215.9		92	110				3100	13.9	200127X/200215XHUWF Laakeri
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF Laakeri
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF Laakeri
133	200.025		85.74	101.6				3400	9.2	164133X/164200XHUWF Laakeri
133	215		92	110				3100	13.9	200133X/200215HUWF Laakeri
133	215.9		92	110				3100	12.85	200133X/200215XHUWF Laakeri
137	215		92	110				3100	13.9	200136X/200215HUWF Laakeri
137	215.9		92	110				3100	12.33	200136X/200215XHUWF Laakeri
140	215		92	110				3100	13.9	200139X/200215HUWF Laakeri
140	215.9		92	110				3100	13.9	200139X/200215XHUWF Laakeri
140	241.3		104	126				2900	20.485	240139X/240241XHUWF Laakeri
140	200		78	92.3				3100	10	161140/161200HSUWF Laakeri
140	200.025		78	92.3				3100	10	161140/161200XHSUWF Laakeri
143	200		78	92.3				3100	10	161142X/161200HSUWF Laakeri
143	200.025		78	92.3				3100	10	161142X/161200XHSUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
145	241.3		104	126				2900	19.405	240145/240241XHUWF Laakeri
145	256		92	110				2700	14.87	203145/203256HUWF Laakeri
149	241.3		104	126				2900	20.485	240149X/240241XHUWF Laakeri
150	210		76	92				3000	10.2	163150/163210HUWF Laakeri
152	222.25		81.2	105				3000	11.15	183152X/183222XHUWF Laakeri
152	254		116.9	155				2600	25.6	281152X/281254XHUWF Laakeri
152	266.7		116.9	155				2600	25.6	281152X/281266XHUWF Laakeri
156	254		116.9	155				2600	25.6	281155X/281254XHUWF Laakeri
156	266.7		116.9	155				2600	25.6	281155X/281266XHUWF Laakeri
156	235		92	110				2700	14.87	203156/203235HUWF Laakeri
165	254		88.96	108				2600	15	186165X/186254XHUWF Laakeri
170	254		88.96	108				2600	15	186170/186254XHUWF Laakeri
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF Laakeri
178	254		88.96	108				2600	15	186177X/186254XHUWF Laakeri
178	288.925		122.25	154				2300	32.6	280177X/280288XHUWF Laakeri
185	258		90	110				2500	12.3	187185/187258HUWF Laakeri
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Laakeri
191	266.7		94.14	113.18				2400	15.5	204190X/204266XHUWF Laakeri
191	282.575		91.42	120				2300	20	242190X/242282XHUWF Laakeri
191	290		96	114				2200	17.3	206190X/206290HUWF Laakeri
203	310		121.08	156				2100	32.8	283203X/283310HUWF Laakeri
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF Laakeri
210	290		96	114				2200	17.3	206210/206290HUWF Laakeri
210	310		121.08	156				2100	32	283210/283310HUWF Laakeri
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF Laakeri
216	355.6		124.72	166				1900	51	284215X/284355XHUWF Laakeri
229	355.6		124.72	166				1900	51	284228X/284355XHUWF Laakeri
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF Laakeri
230	330		90.24	122				1900	27.35	244230/244330HUWF Laakeri
235	327.025		90.24	122				1900	21	244234X/244327XHUWF Laakeri

Perusmitat					Peruskuormitusluokitus		Nopeusluokitukset		massa	Malli
Perusmitat					dynaaminen	staattinen	Referenssinopeus	Nopeutta rajoittava	massa	Laakeri nro
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Laakeri nro
235	330		90.24	122				1900	27	244234X/244330HUWF Laakeri
235	355.6		124.72	166				1900	48.43	284234X/284355XHUWF Laakeri
254	400.05		114.24	146				1700	55.5	382254X/382400XHUWF Laakeri
275	406.4		140	176				1600	67.6	320275/320406XHUWF Laakeri
280	406.4		140	176				1600	64.84	320280X/320406XHUWF Laakeri
330	482.6		157.73	200				1400	105	380330X/380482XHUWF Laakeri
338	419.1		79	94				1500	30.9	152338X/152419XHUWF Laakeri
356	482.6		100.55	145				1400	58.7	282355X/282482XHUWF Laakeri
381	508		147	187				1300	80	303381X/303508XHUWF Laakeri
406	549.275		152.36	200				1200	98.25	323406XS/323549XHSUWF Laakeri
432	533.4		100.78	123				1200	45	232431X/232533XHUWF Laakeri
457	596.9		147	187				1100	95	300457X/300596XHUWF Laakeri
506	636		147	187				1000	116	307506/307636HUWF Laakeri

Liiketoiminnan tulevaisuuden suunnittelu

Tietoja UKL:stä

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 - Kaksiriviset kartiorullalaakerit suppliers and OEM/ODM BT2B 332504/HA2 - Kaksiriviset kartiorullalaakerit company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Lisää meistä Ukl Bearing Manufacturing Co.,Ltd

0+

vuotta

Alan kokemus
0+

Mallin monimuotoisuus
0+

Työntekijöiden määrä
0

$

Vuotuinen viennin arvo

Kunniakirja

Uutiset

Miksi NU 309 lieriörullalaakeri on erinomainen moottori- ja vaihteistomalleissa?
04 Jun, 2026
Key Takeaway: NU 309 -laakeri on erinomainen kelluvana laakerina Moottori- ja vaihteistomalleissa, joissa akselin lämpölaajeneminen on kriittinen huolenaihe, NU 309 laakeri ...

LUE LISÄÄ
2206 AV Nilos -renkaan asentaminen (vaiheittainen opas)
28 May, 2026
Asenna avoin puoli laakeria kohti Asennaksesi oikein 2206 AV Nilos-rengas, aseta se siten, että kupera (avoin) puoli osoittaa kohti laakerin rataa. Renkaan tulee istua t...

LUE LISÄÄ
Kuinka valita oikea kulmakuulalaakeri nopeisiin sovelluksiin?
21 May, 2026
Optimaalisen rullakomponentin valitseminen nopeille pyöriville koneille vaatii syvällistä ymmärrystä käyttöolosuhteista, sisäisestä geometriasta ja lämmönhallinnasta. Tarkkuuskoneiden joukossa, ...

LUE LISÄÄ
Tarkkuus paineen alla: avaintekijät lääkinnällisten laitteiden laakereiden valinnassa
14 May, 2026
Nopeasti kehittyvällä lääketieteen tekniikan alalla pieninkin komponentti voi määrittää hengenpelastuslaitteen onnistumisen. Näiden joukossa lääketieteellisten laitteiden laakerit näy...

LUE LISÄÄ
